GP360 Part Eco Mobile Welfare Units
THE GROUNDHOG anti-vandal, mobile site office unit

Fixed Axle
Office

Innovative, functional, fixed axle office unit

The single and twin fixed axle Mobile Office Units are lightweight towable units and has good economic use of space and provides suitable on-site office and canteen accommodation.

The units comes equiped with a wall mounted heater, lighting and double power socket as standard, optional features include warm wash set over large sink, storage under worktop, coat hooks and notice board, providing a pleasant environment for office and canteen use.

The mobile fixed Axle office unit is easily towed, and can be deployed by a one man operation. Its’ many safety features make it a high secure and money saving choice for rental companies and contractors.

  • Single and twin fixed axle unit
  • Robust, anti-vandal and incredibly efficient
  • Provides a pleasant environment for office and canteen use
  • Units comes equipped with a wall mounted heater, lighting and double power socket as standard

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

Single Axle Twin Axle
Dimensions 4820mm(L) x 2300mm(W) 6250mm(L) x 2300mm(W)
Unladen Weight 1,450kg (approx)* 1,800kg (approx)*
Possible Gross Weight 1,800kg* 3,000kg*

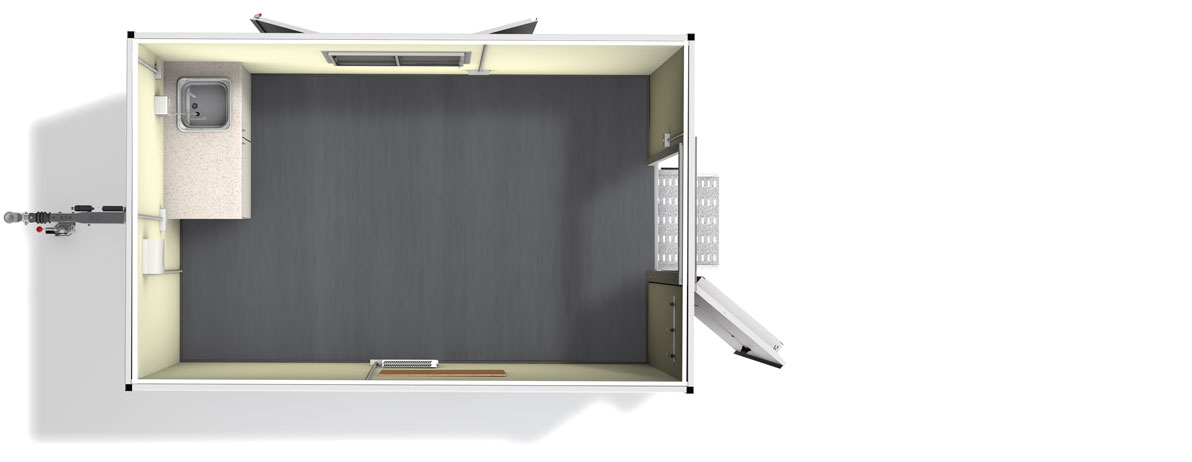

12’ Single Axle Fixed Axel office single layout

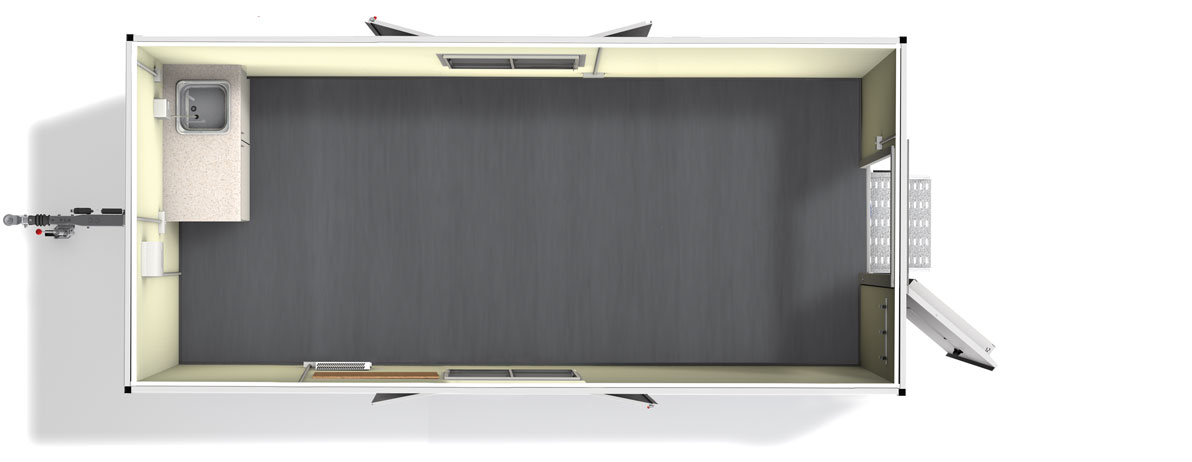

16’ Twin Axle Fixed Axel office twin layout

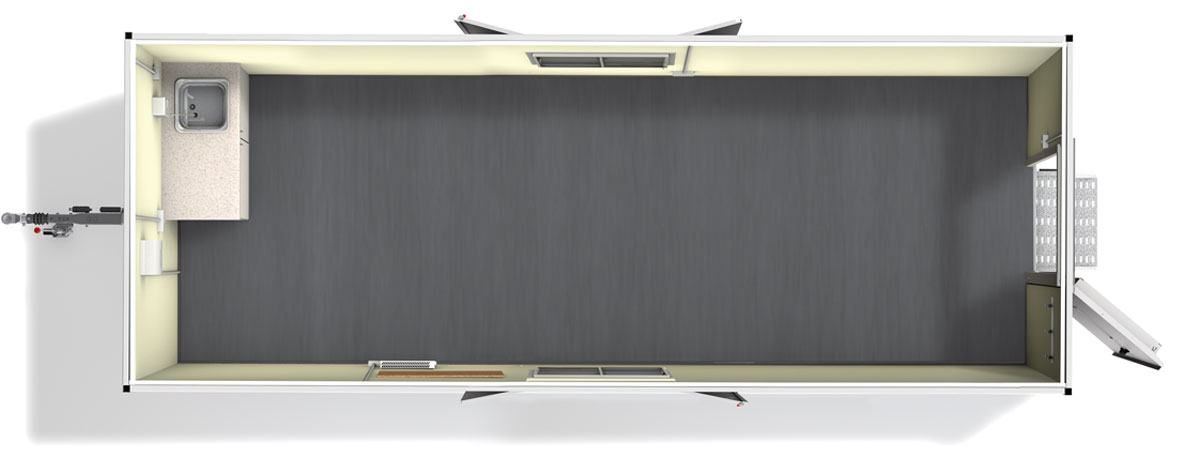

20’ Twin Axle Fixed Axel office twin layout
Office Area
  • Electric wall mounted heater 1KW
  • Open plan working area as standard
  • 240V strip lighting
  • 1 x double 13Amp socket outlet
External construction
  • 4 lifting eyes
  • 240v appliance inlet
  • 4 stabilising arms
  • Galvanised retractable steps
  • Sliding window with steel shutters
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation
    inserts
Road lighting
  • 12 Volt LED detachable lighting board c/w mounting bracket and full LED road lighting which includes front and high level markers.
