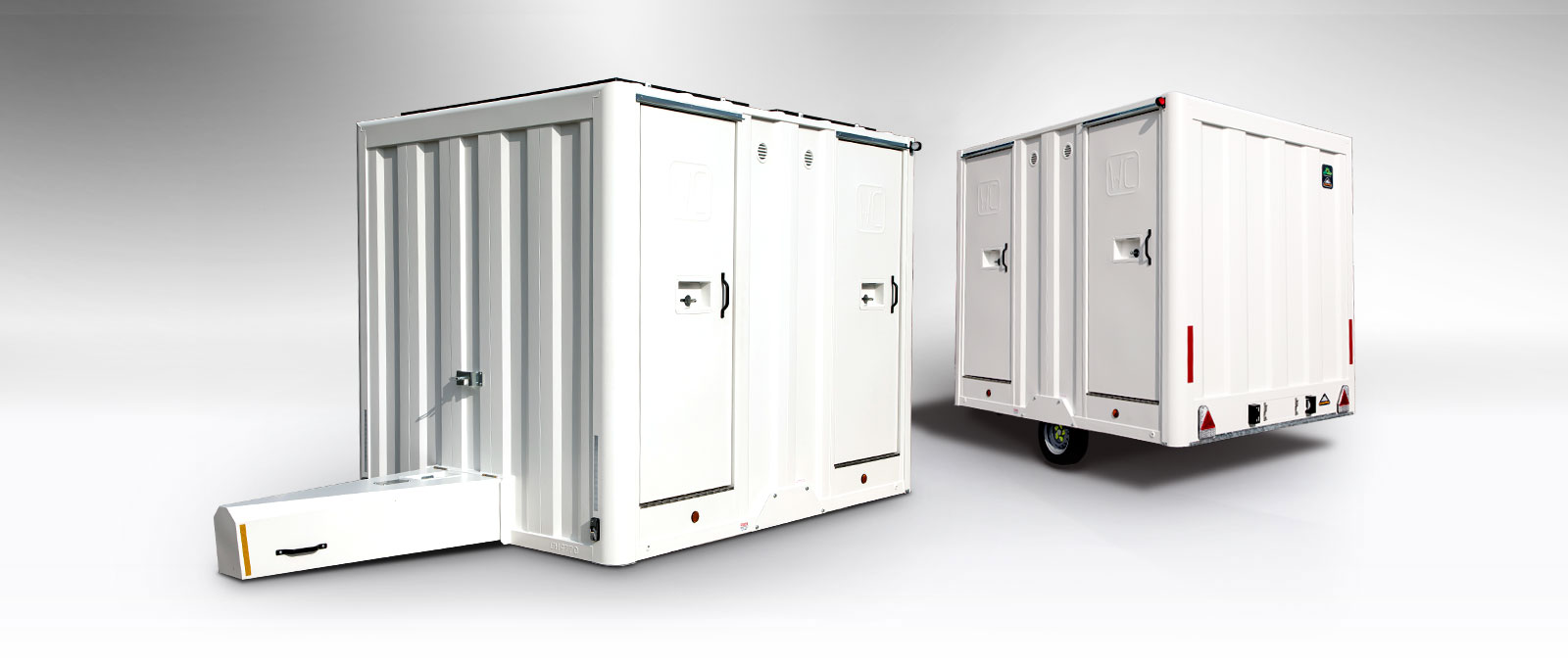

Unisex Solar Hybrid Toilet
Anti-vandal robust & easy-to-use single axle mobile toilet unit

Mobile Solar Full Flush Toilet

2 Cubicles

Ideal for Construction, Rail,
Utility and Hire industries

Innovative, functional, environmentally efficient and cost effective.

The mobile groundhog anti-vandal twin toilet unit has an in-built effluent tank, so there is no need to hire separate effluent tanks saving you time and money.

Robust and incredibly efficient, this unit offers huge reductions in fuel usage, carbon emissions and service schedules.

Incorporating the latest environmental solar technology, the Groundhog twin toilet unit is ideal for the ever increasing demands of the construction, rail, utility and hire industry.

  • Mobile unit fully galvanised chassis offering flexibility of delivery options and fast deployment
  • Full Flush toilet x 2
  • 2 x 200 litre Fresh water tank
  • 2 x 200 litre underfloor waste tank
  • Large stainless steel sink with warm water
  • Separate male and female facilities
  • Powered by roof mounted solar panels
  • High level windows c/c security frame
  • Fully hot-dipped galvanised chassis
  • 16Amp appliance inlet in lockable box
  • 12V LED lighting with PIR

Offering a pleasant & comfortable welfare environment

The mobile solar toilet units from Groundhog are suitable for accommodating two persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Ground Lowering Mechanism
Ground Lowering Mechanism

Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

Secure nose cone
Secure
nose cone

The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.

Secured in less than 3 minutes
Easily towed, one man operation secured and manoeuvred on site.
Fast deployment time means more time on the job, making it the money saving choice of welfare unit for rental companies and contractors.
Unhitch from towing vehicle
operate hydraulics using the push button controls

Unhitch from towing vehicle and operate hydraulics using the push button controls

Lower unit to the ground and unplug controls

Lower unit to the ground and unplug controls

Close & lock canopy to protect towing facility

Close & lock canopy to protect towing facility

arrow-circle
arrow-circle
arrow-circle
0 min
3 mins
Watch our Single Axle Mobile deployment video
play icon
Deployment video

CDM & HSE compliant
The Groundhog solar toilet complies with Health & Safety regulations which guarantees certain facilities for end users.

SAFETY WORKING REGULATIONS

These include sanitary conveniences and washing facilities. Groundhog solar toilets are supplied with a current electrical installation test certificate.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Accommodates up to 2 people
seating icon seating icon
Dimensions 3000mm(L) x 2120mm(W) x 2500mm(H)
Dimensions Inc. Drawbar & raised 4299mm(L) x 2120mm(W) x 2900mm(H)
Solar Panel 2 x 425 W
Inverter 375 W
Fresh Water Container 2 x 20 Litres
Fresh Water Tank 2 x 200 Litres
Under Floor Waste Tank 2 x 200 Litres

SWO7600

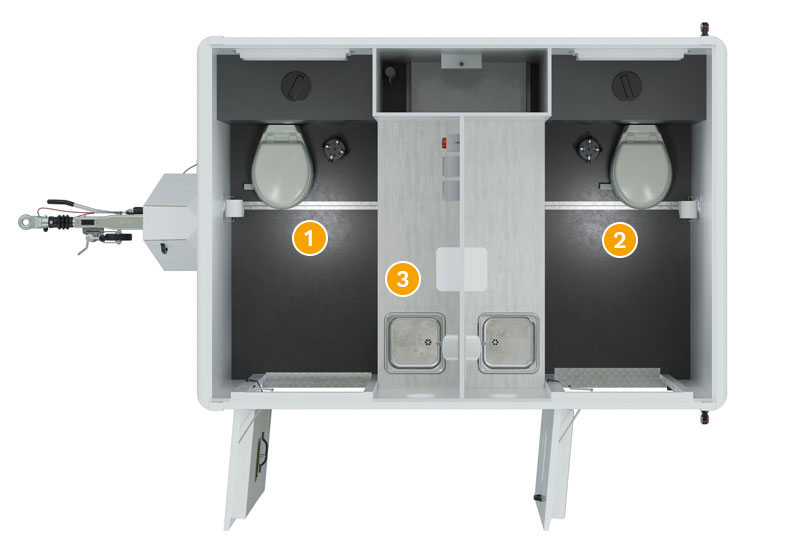

1.Toilet Area
  • Full flush toilet
  • Large stainless steel sink c/w warm water tap
  • Liquid soap dispenser
  • 200 litre fresh water tank
  • 200 litre under floor waste tank
  • Waste outlet
2.Toilet Area
  • Full flush toilet
  • Large stainless steel sink c/w warm water tap
  • Liquid soap dispenser
  • 200 litre fresh water tank
  • 200 litre under floor waste tank
  • Waste outlet
3. Lockable access area under worktop
  • 12V Water Pump
  • 240AH Battery
  • Hydraulic Power Pack
  • Solar Charge Regulator
  • 375W Inverter
  • Battery Charger
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation
    inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Steel personnel doors to two separate areas
    (Toilet areas)
  • Single axle trailer
  • Low level lifting eyes
  • High level lifting eyes
  • Fork pockets
  • High level windows c/w security frame
  • 16 Amp appliance inlet c/w lockable steel box
  • 2 x 425 Watt Solar panels fitted to roof
  • Easy access wheel removal
Road lighting
  • 12 Volt fixed lighting c/w number plate bracket
