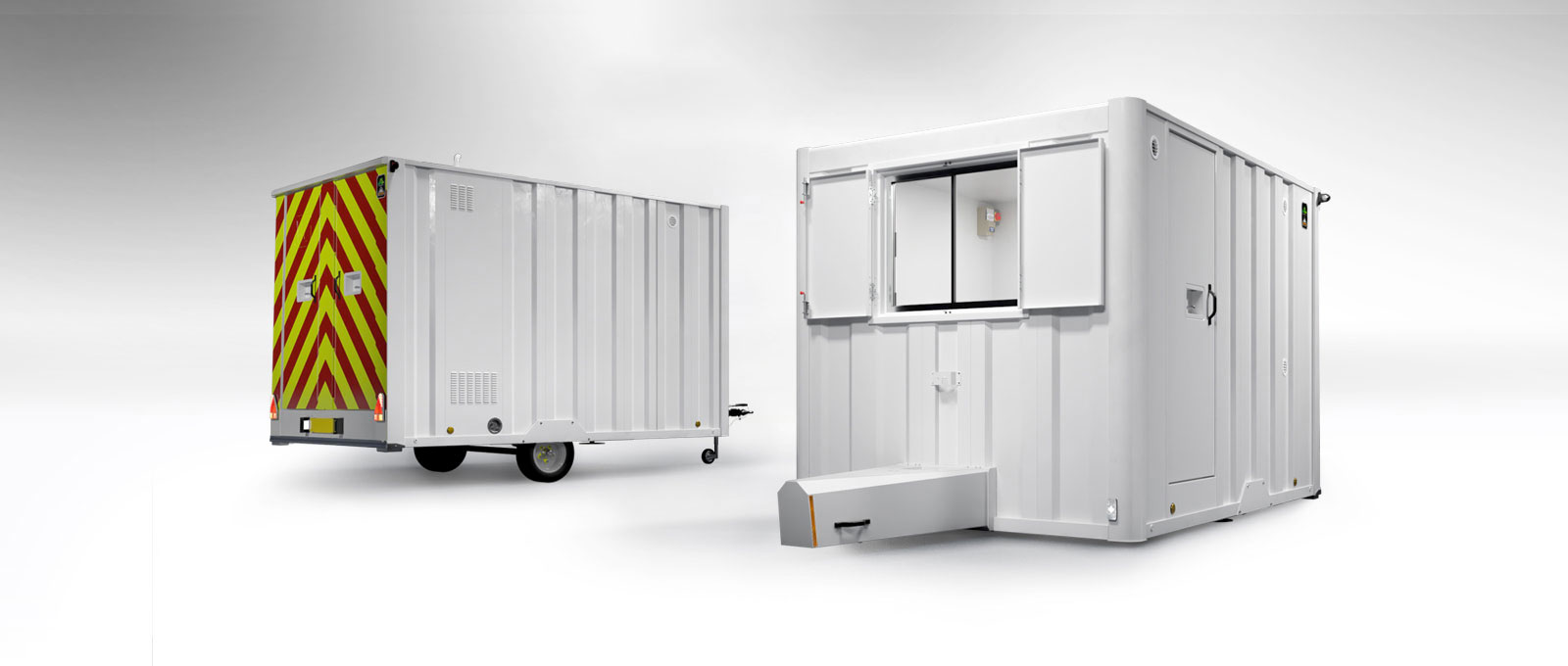

GP360 Standard Mobile Welfare Units
THE GROUNDHOG GROUND LOWERING, ANTI-VANDAL

GP360 Standard
Mobile Welfare Units

Comfortable, Compact and HSE compliant

The Groundhog GP360 Standard Mobile Welfare Units are ideal for flexible on-site applications, offering a comfortable seating area, accommodating up to 6 people.

Easily towed, one man operation secured and manoeuvred on site, in less than 3 minutes. Its’ many safety features make it a high secure and money saving choice of welfare unit for rental companies and contractors.

  • 12V LED lighting with PIR
  • Lightweight, compact towable and anti-vandal
  • Meets HSE & CDM requirements
  • Provides all your on-site needs in one small package
  • 12V socket and USB

Offering a pleasant & comfortable welfare environment

The Standard Mobile units from Groundhog are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Ground Lowering Mechanism
Ground Lowering Mechanism

Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

Secure nose cone
Secure
nose cone

The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.

Secured in less than 3 minutes
Easily towed, one man operation secured and manoeuvred on site.
Fast deployment time means more time on the job, making it the money saving choice of welfare unit for rental companies and contractors.
Unhitch from towing vehicle
operate hydraulics using the push button controls

Unhitch from towing vehicle and operate hydraulics using the push button controls

Lower unit to the ground and unplug controls

Lower unit to the ground and unplug controls

Close & lock canopy to protect towing facility

Close & lock canopy to protect towing facility

arrow-circle
arrow-circle
arrow-circle
0 min
3 mins

CDM & HSE compliant
The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals

Seats up to 6 people
seating icon seating icon seating icon seating icon seating icon seating icon
Dimensions 3655mm(L) x 2300mm(W)
Dimensions Inc. Drawbar 4920mm(L) x 2300mm(W)*
Unladen Weight 1,700kg*
Possible Gross Weight 1,800kg*
Generator 6kVA

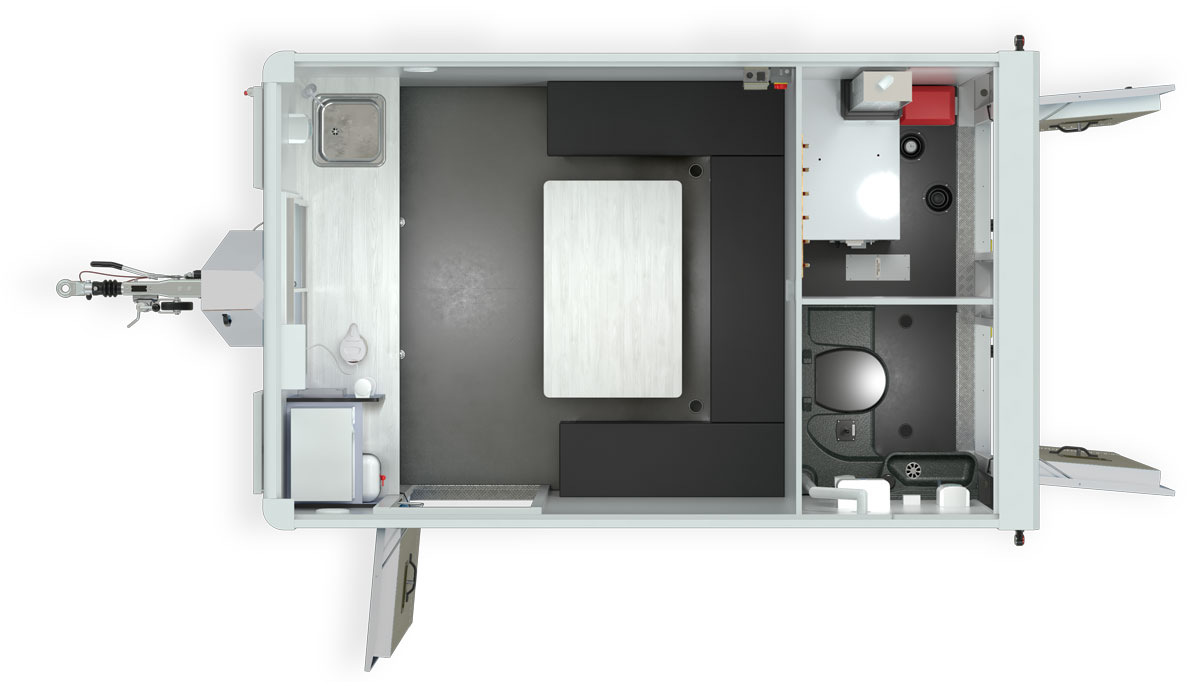

GP360
1. Welfare Area
  • Table and bench seating for up to 6 people
  • Microwave and kettle – both hard-wired
  • 230V ‘Strip light'
  • Fresh and waste water containers (20L cap each)
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • 12V pump for water system
  • 1kw air blown heater
  • Single 2Amp socket outlet
  • Consumer board c/w RCD & MCB’s
  • Generator control panel with hour run meter
  • Paper towels, liquid soap and cup dispenser
  • Carbon monoxide monitor and smoke alarm
  • Fresh drinking water container (20L)
  • High level vent
2. Toilet Area
  • Plastic recirculating toilet c/w ventilation pipe
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Toilet roll holder
  • 12V LED light with PIR
  • Warm water tap supplied by on-board heating system
  • Liquid soap & paper towel dispenser
3. Generator Area/ Warm Room
  • 12V LED lighting with PIR
  • 240V tubular heater
  • Coat hooks
  • Ventilation panel
  • 6kVA diesel generator with exhaust venting through roof area
  • Access to fuel tank with separate fuel level gauge (fuel tank capacity = 58L)
  • Fuel tank runtime = approx. 25 hours
  • Fuel Active system
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation
    inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to three separate areas
    (Toilet, Warm Room/Generator and Canteen)
  • Single axle with unique Groundhog hydraulic system to
    enable the unit to be lowered to Ground level with hand held control
  • Hydraulically damped overrun Tow coupling with 40mm
    Eye 50mm ball hitch and jockey wheel (50mm ball hitch optional)
  • Steel nose cone shroud c/w lock to secure whilst lowered on site
  • Threaded bushed set in base rail to enable lifting rings to be positioned for low level lifting
  • Fully hot-dipped galvanised chassis
Road lighting
  • Standard lighting board c/w mounting bracket. Includes front and high level markers.
