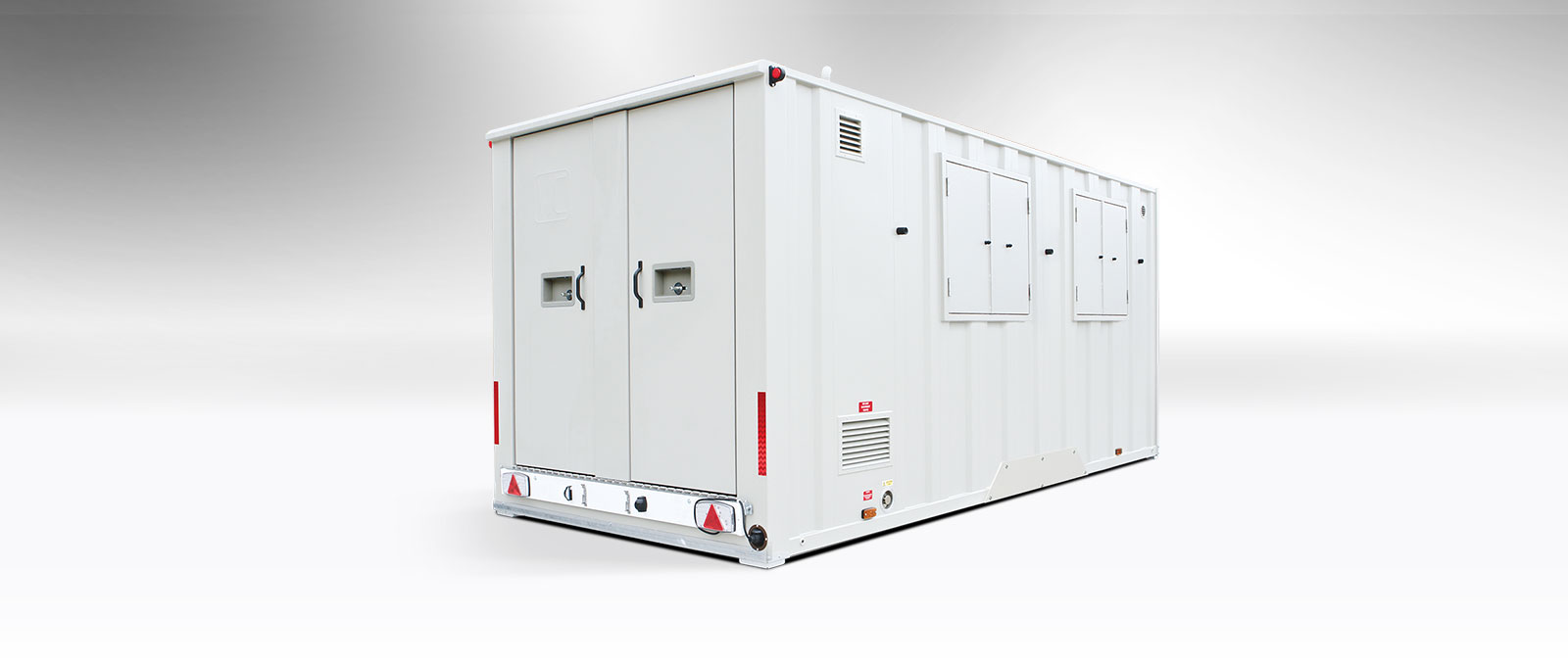

GP500 Eco Fusion Mobile Welfare Units
THE GROUNDHOG GROUND LOWERING, ANTI-VANDAL

GP500 STANDARD
Mobile Welfare Units

Spacious, comfortable, well equipped, easily towed & secured

The double axle Groundhog Mobile Welfare Unit GP500D is a lightweight and compact towable unit that meets HSE requirements and provides all your on-site needs in one small package.

The units are suitable for accommodating ten persons, which provides pleasant and safe working environments, ideal for rental companies and contractors. Easily towed, one man operation secured and manoeuvred on site, in less than 3 minutes. Its’ many safety features make it a high secure and money saving choice of welfare unit for rental companies and contractors.

  • Lightweight, compact towable and anti-vandal
  • Meets HSE & CDM requirements
  • Provides all your on-site needs in one small package

Offering a pleasant & comfortable welfare environment

The Eco Fusion Mobile units from Groundhog are suitable for accommodating twelve to fourteen persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Ground Lowering Mechanism
Ground Lowering Mechanism

Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

Secure nose cone
Secure
nose cone

The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.

Secured in less than 3 minutes
Easily towed, one man operation secured and manoeuvred on site.
Fast deployment time means more time on the job, making it the money saving choice of welfare unit for rental companies and contractors.
Unhitch from towing vehicle
operate hydraulics using the push button controls

Push button controls to lower front and rear hydraulic rams

Rams lift unit from ground ready to release axle pins

Rams lift unit from ground ready to release axle pins

Unit is lowered and canopy locked to protect towing facility

Unit is lowered and canopy locked to protect towing facility

arrow-circle
arrow-circle
arrow-circle
0 min
3 mins

CDM & HSE compliant
The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals

Seats up to 12-14 people
seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon seating icon
Dimensions 5000mm(L) x 2300mm(W)
Dimensions Inc. Drawbar 6320mm(L) x 2300mm(W)*
Unladen Weight 2,300kg*
Possible Gross Weight 3,000kg*
Generator 6kVA

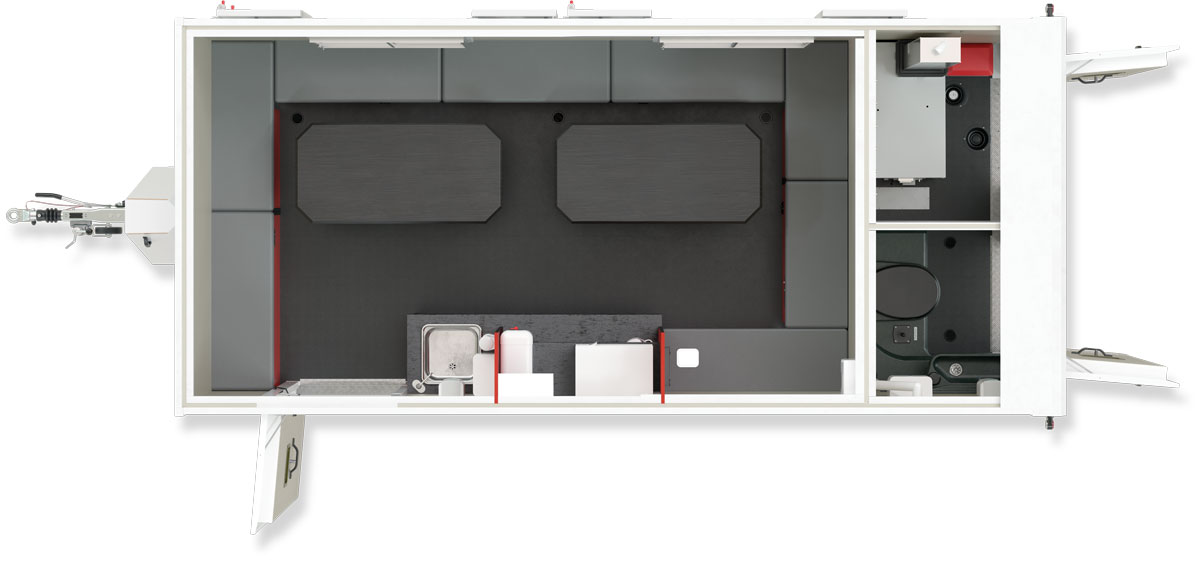

SWO7600
1. Welfare Area
  • Table and bench seating for up to 12-14 operatives
  • Microwave and kettle – both hard-wired
  • Fresh and waste water containers (20L cap each)
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • 12V pump for water system
  • 1kw air blown heater
  • 240V 600mm strip light
  • Single 2Amp socket outlet
  • Consumer board c/w RCD & MCB’s
  • Generator control panel with hour run meter
  • Paper towels, liquid soap and cup dispenser
  • Carbon monoxide monitor and smoke alarm
  • Fresh drinking water container (20L)
  • High level vent
2. Toilet Area
  • Plastic recirculating toilet c/w ventilation pipe
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Toilet roll holder
  • 12V LED light with PIR
  • Warm water tap supplied by on-board heating system
  • Liquid soap & paper towel dispenser
3.Warm Room / Generator Area
  • Bulkhead light 240V
  • 240V tubular heater
  • Coat hooks
  • Ventilation panel
  • 6kVA diesel generator with exhaust venting through roof area
  • Access to fuel tank with separate fuel level gauge (fuel tank capacity = 58L)
  • Fuel tank runtime = approx. 25 hours
  • Fuel Active system
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to three separate areas (Toilet, Warm Room/Generator and Canteen)
  • Single axle with unique Groundhog hydraulic system to enable the unit to be lowered to Ground level with hand held control
  • Hydraulically damped overrun Tow coupling with 40mm Eye 50mm ball hitch and jockey wheel (50mm ball hitch optional)
  • Steel nose cone shroud c/w lock to secure whilst lowered on site
  • Threaded bushed set in base rail to enable lifting rings to be positioned for low level lifting
  • Fully hot-dipped galvanised chassis
Road lighting
  • Standard lighting board c/w mounting bracket. Includes front and high level markers.
