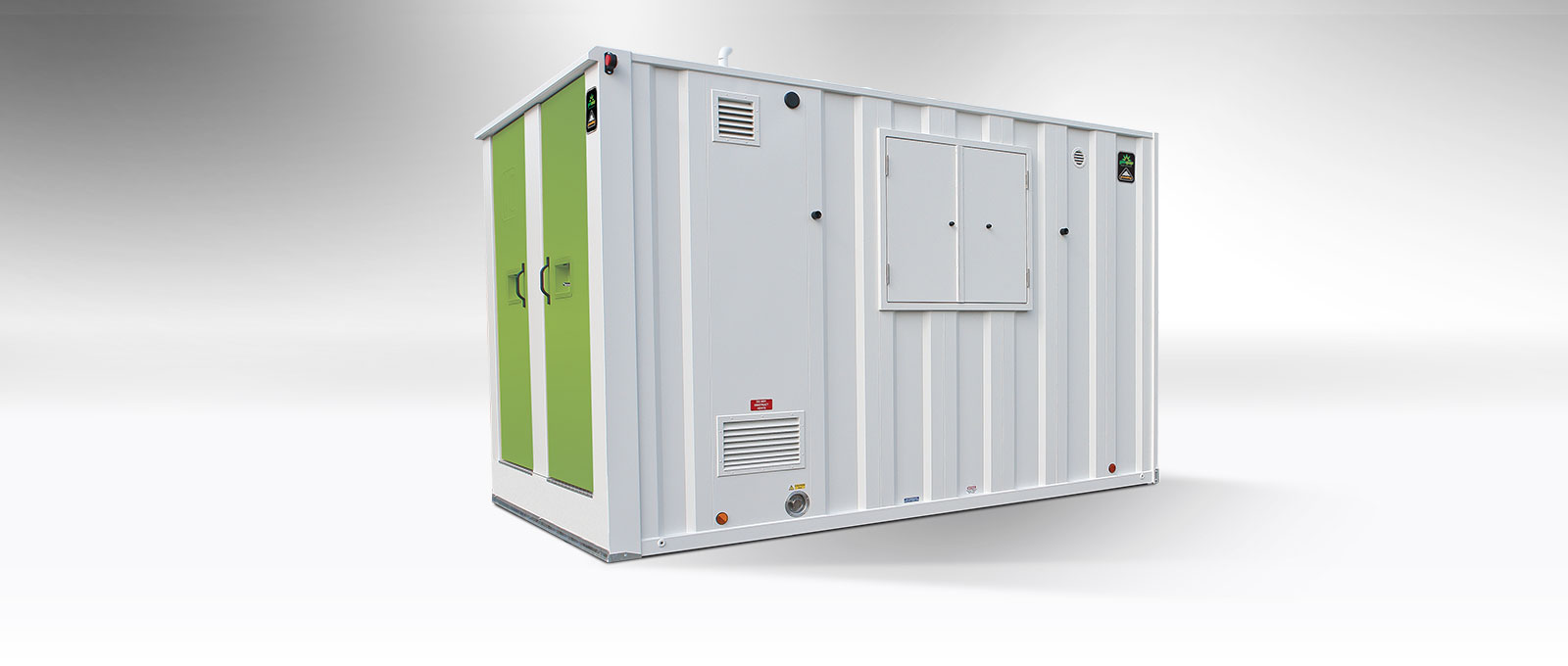

SP360 Eco Fusion Static Welfare Units
THE GROUNDHOG, ANTI-VANDAL

SP360 Eco Fusion
Static Welfare Units

Innovative, functional, environmentally efficient and cost effective.

The Groundhog Welfare Unit SP360 Eco Fusion is lightweight and compact, which meets HSE requirements and provides all your on-site needs in one small cost effective package. The units are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors. Once lifted into position, they provide a vandal resistant facility and can come with a number of additional money saving features.

The Groundhog Eco Fusion static welfare unit is available in three sizes: SP360 Eco Fusion for six operatives; SW6100 Eco Fusion for eight operatives; the SWO7600 Eco Fusion for eight operatives and two office staff and the SWO9700 Eco Fusion for ten operatives.

  • Lightweight, anti-vandal and incredibly efficient
  • Huge reductions in fuel usage, carbon emissions and service schedules.
  • Incorporating all the latest environmental and safety technologies, these units are ideal for the ever increasing demands of the hire industry

Offering a pleasant & comfortable welfare environment

The Eco Fusion Static units from Groundhog are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

The environmental choice

The Eco Fusion Static units from Groundhog offers the legendary robust and ease of use of the standard Groundhog SP360 whilst offering a green environmental solution.

The SP360 Eco Fusion is powered by an on board 12V battery enabling, the led lights, heating, hot water and inverter sockets (to charge lap tops, mobile phones and small printer) to be run without the need of the on board generator. The generator is only required to charge the onboard battery and run the hot water, kettle and microwave. The generator is fitted with an auto stop timer to save over running and unnecessary wastage.

BATTERY STORES EXCESS POWER
SP360 Fusion control panel

SP360 Fusion control panel with battery indicator allows the user to control the heater temperature. Included is an inverter powered single socket.

BATTERY STORES EXCESS POWER
12V LED PIR lighting

12V LED PIR lighting automatically senses movement turning lights on automatically. Situated in the canteen, toilet and generator room.

BATTERY STORES EXCESS POWER
Battery Guard with Pro Charge Ultra

Pro Charge Ultra (a) charges the 130A/hr battery when the generator is running. The Battery Guard (b) prevents the excessive discharge of the battery and protects electronic appliances against undervoltage.

BATTERY STORES EXCESS POWER
Air blown heating system

The air blown heating system does not require the generator to run continuously due to the on-board battery system saving on fuel and servicing costs. Heating outlets set in canteen and generator room.

GENERATOR PRODUCES POWERGENERATOR PRODUCES POWER
BATTERY STORES EXCESS POWERBATTERY STORES EXCESS POWER
NO WASTED POWERNO WASTED POWER
LESS FUEL USEDLESS FUEL USED
COST SAVINGS ON FUEL USECOST SAVINGS ON FUEL USE

Saves you money

The Eco Fusion Static units' environmental features give owners and end users savings by way of reduced fuel usage, 60% reduction in generator servicing, longer generator life, fewer breakdowns and massively reduced noise pollution.

  • High quality buildHigh quality build
  • Reduced fuel usageReduced fuel usage
  • 60% reduction in generator servicing60% reduction in generator servicing
  • Longer generator life Longer generator life
  • Fewer breakdownsFewer breakdowns
  • Full service and maintenance package Full service and
    maintenance package
  • Roof mounted solar panelRoof mounted solar panel
Which leads to…
  • Increased longevity of unitIncreased longevity of unit
  • Extended warrantiesExtended warranties
  • Higher residual valueHigher residual value
Saving you money…
Saving you money
Greater return on investment
Value Proposition
Potential yearly savings:*
Value Proposition Value Proposition
* Figures are for guidance only. For your own specific savings, contact Genquip for your bespoke value proposition.

Providing a secure working environment
All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

CDM & HSE compliant
The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals

Seats up to 6 people
seating icon seating icon seating icon seating icon seating icon seating icon
Dimensions 3600mm(L) x 2300mm(W)
Approximate Net Weight 1,500kg*
Generator 6kVA

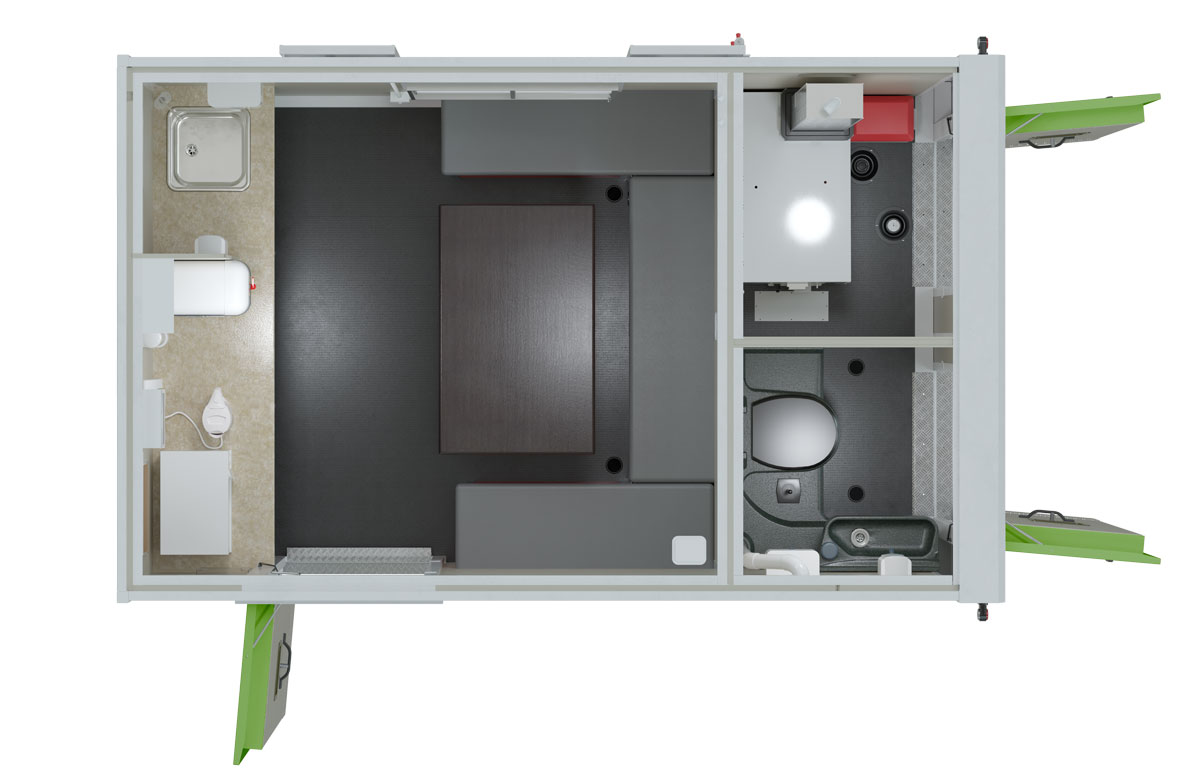

SP360 Fusion
1. Welfare Area
  • Table and bench seating for up to 6 people
  • 12V LED lighting with PIR
  • Air blown heating system
  • Microwave and kettle – both hard-wired
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • 12V cooler box (optional)
  • Single inverter powered socket outlet
  • Consumer board c/w RCD & MCB’s
  • Generator start panel c/w hour run meter
  • Fresh & waste water containers (20 Ltr cap each)
  • 12V socket and USB
  • Carbon monoxide monitor and smoke alarm
  • Paper towels, liquid soap and cup dispenser
  • 130Amp hour battery/ charger & battery guard
2. Welfare Area
  • Plastic recirculating toilet c/w ventilation pipe
  • Toilet tank size: 280L
  • Toilet roll holder
  • 12V LED lighting with PIR
  • Forearm pedestal wash basin c/w warm water tap
  • Warm water supplied by on-board heating system
  • Liquid soap & paper towel dispenser
3. Warm Room / Generator Area
  • 12V LED lighting with PIR
  • Air blown heating system
  • Coat hooks
  • Ventilation panel
  • 6kVA diesel generator with exhaust venting
  • Access to fuel tank with separate fuel level gauge (58 Ltr cap)
  • Fuel Active system
  • Generator start battery
  • Fuel tank runtime = approx. 25 hours
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation
    inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to three separate areas
    (Toilet, Warm Room/Generator and Canteen)
  • Fixed low level lifting & fork pockets
