SP360D - Static Welfare Units |GenQuip
THE GROUNDHOG

SP360 DSTANDARD

Static Welfare Unit

  • Robust, anti-vandal and incredibly efficient
  • Provides a pleasant, spacious, restful environment
  • Ideal for construction, rail and highways contractors
  • All your welfare needs incorporated in one unit
Welfare Fusion SP360D

STATIC WELFARE UNITS

Groundhog STATIC

Anti-vandal, static, site accommodation unit

The Groundhog SP360D Standard Static Welfare Unit is incredibly efficient and provides all your on-site needs in one compact, cost effective package.

Mindful of the environment, economical, comfortable, compact and HSE compliant

The Groundhog Welfare Unit SP360D is lightweight and compact, which meets HSE requirements and provides all your on-site needs in one small cost effective package.

The units are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors. Once lifted into position, they provide a vandal resistant facility and can come with a number of additional money saving features.



Useful information

Dimensions 3600mm(L) x 2300mm(W)
Approximate Net Weight 1500kg
Generator 6kVA
SP360 seating up to 6 people
Offering a pleasant & comfortable
welfare environment

The Static units from Groundhog are suitable for accommodating six persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

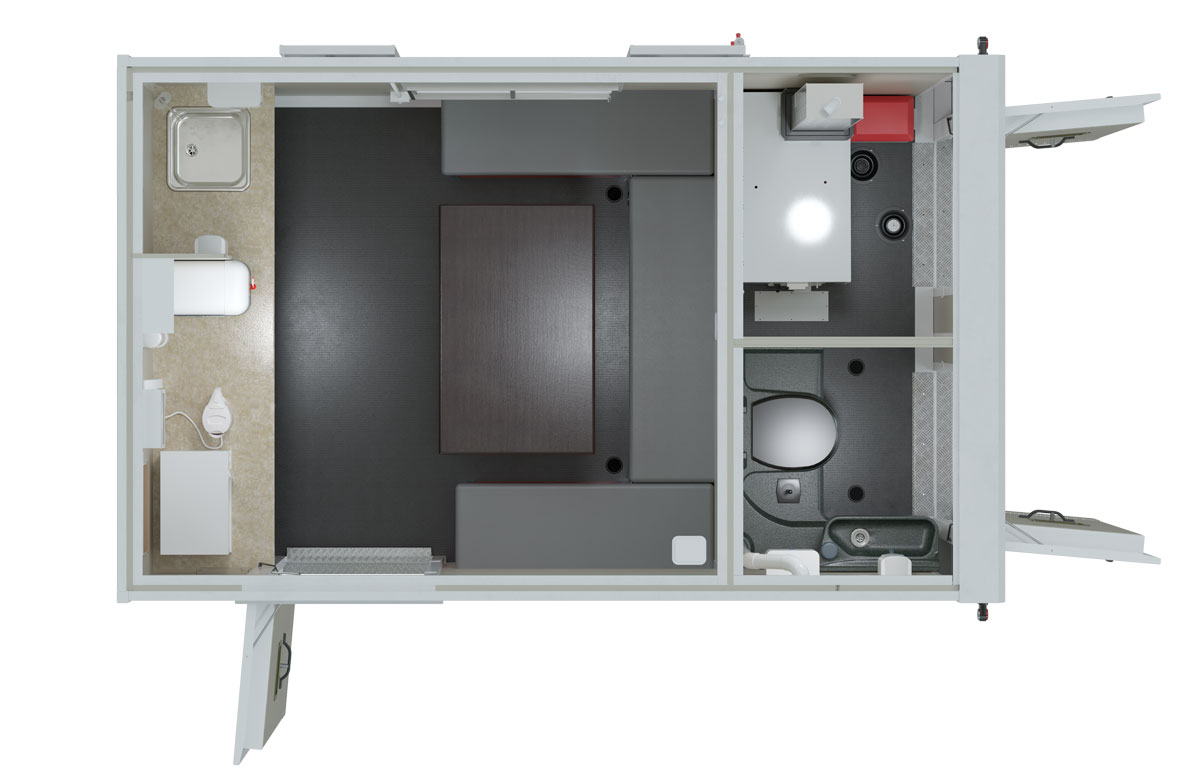

Static welfare cabin key features

Accommodating Health & Safety requirements and providing all your on-site needs in one small package.
GP360
1. Welfare Area
  • Table and bench seating for up to 6 persons
  • Microwave
  • Fresh and waste water containers (20-ltr cap each)
  • Hot wash with large sink
  • Electric pump for water system
  • Electric wall mounted heater
  • 240 Volt Lighting
  • Double 13amp socket outlet
  • Consumer Board c/w RCD & MCB’s
  • Generator control panel with hour run meter
  • Paper towel dispenser
  • Liquid soap dispenser
  • Disposable cup dispenser
  • Carbon monoxide monitor
  • Smoke alarm
  • High level vent
  • Fresh drinking water container (20-ltr)
2.Toilet Area
  • Plastic Recirculating Toilet c/w ventilation pipe through roof area
  • Recirculating Wash basin with foot pump
  • Toilet roll holder
  • 12 Volt L.E.D. light with movement sensor
  • Ventilation panel
3.Warm Room / Generator Area
  • Bulkhead light 240 Volt
  • Tubular heater
  • Coat hooks
  • Ventilation panel
  • 6KVA Diesel Generator with exhaust venting through roof area
  • Access to fuel tank complete with fuel level gauge (58 Ltr cap)
  • Fuel Active System
Flooring
  • Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to three separate areas
    (Toilet, Warm Room/Generator and Canteen)
  • Removable low level lifting eyes
  • Fixed low level lifting & fork pockets

Optional Extras

Providing a secure working environment

All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

CDM & HSE compliant

The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals
Regulation 20 Sanitary Conveniences
Regulation 21 Washing Facilities
Regulation 22 Provision for Drinking Water
Regulation 23 Provision for Drying Clothing
Regulation 24 Facilities for Changing Clothing
Regulation 25 Facilities for Rest & to Eat Meals
