THE GROUNDHOG

SWO7600 FUSION

Static Welfare Unit

  • Lightweight, anti-vandal and incredibly efficient
  • Huge reductions in fuel usage, carbon emissions and service schedules.
  • Incorporating all the latest environmental and safety technologies, these units are ideal for the ever increasing demands of the hire industry
Welfare Fusion SWO7600 Fusion

STATIC WELFARE UNITS

Groundhog FUSION

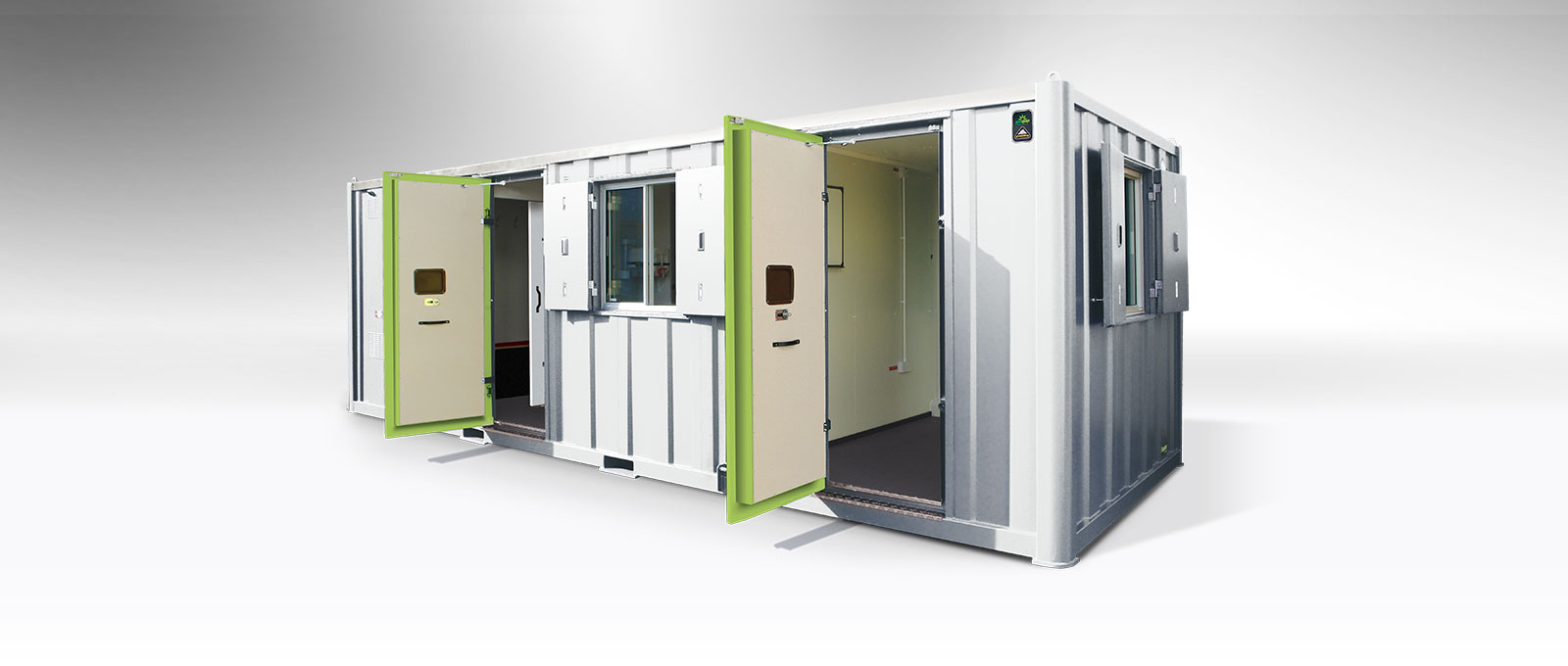

Anti-vandal, static, site accommodation unit

The static SWO7600 offers all the cost effective and environmental features & benefits of the SW6100 but with the added feature of a spacious office.

Innovative, functional, environmentally efficient and cost effective

The standard SWO7600 Fusion & Fusion+ is lightweight and compact, which meets HSE requirements and provides all your on-site needs in one compact cost effective package.

The units are suitable for accommodating eight people, which provides pleasant and safe working environments, ideal for rental companies and contractors with the added feature of a spacious office giving greater flexibility on-site. Once lifted into position, they provide a vandal resistant facility and can come with a number of additional money saving features.



Useful information

Dimensions 7620mm(L) x 2755mm(W)
Unladen Weight 4400kg
Gross Weight 4700kg
Generator 6kVA
SW6100 seating up to 8 people
Offering a pleasant & comfortable
welfare environment

The Fusion Static units from Groundhog are suitable for accommodating eight persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

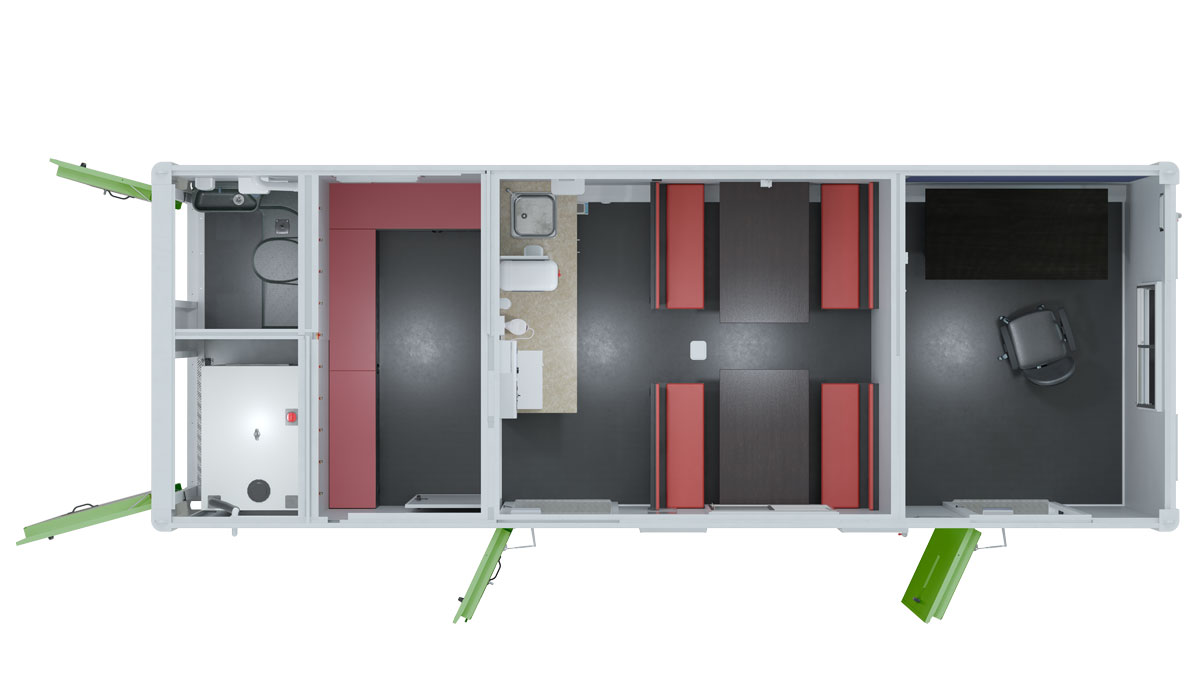

Static welfare cabin key features

Accommodating Health & Safety requirements and providing all your on-site needs in one small package.
SW6100
1. Welfare Area
  • Pleasant and light rest area
  • Table and bench seating for up to 8 people
  • Air blown heating system
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • Microwave and kettle – both hard-wired
  • Fresh & waste water containers (20 Ltr cap each)
  • 12V LED lighting with PIR
  • 1 x single invertor powered socket
  • 12V socket and USB (optional)
  • Consumer board c/w RCD & MCB’s
  • Generator control panel with hour run meter
  • Paper towels, liquid soap and cup dispenser
  • Carbon monoxide monitor and smoke alarm
  • High level vent
  • 1000mm base unit c/w 10L water heating system
  • 12V control panel c/w heater control and battery volt meter
2. Drying Area
  • 12V LED lighting with PIR
  • Air blown heating system
  • Coat hooks
  • Bench seating
  • High level window
3.Toilet Area
  • Plastic recirculating toilet c/w ventilation pipe
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Warm water supplied by on-board heating system
  • Toilet roll holder
  • 12V LED lighting with PIR
  • Ventilation panel
  • Liquid soap and paper towel dispenser
  • Mirror
4.Warm Room / Generator Area
  • 6kVA super silent diesel generator
  • 12V LED lighting with PIR
  • 200 litre diesel tank with filler neck and level gauge with Fuel Active system
  • Fuel tank runtime = approx. 105 hours
  • 130Amp hour battery
  • Generator start battery
  • 12V 30Amp battery charger
  • Battery guard with fuse panel
5. Office Area
  • Sliding window with steel shutters, which when closed are secured internally
  • Notice and wipe clean board
  • Office table and chair (optional)
  • Double glazing (optional)
  • Air blown heating system
  • 12V LED lighting with PIR
  • 12V inverter sockets for use of laptops, printers and phone chargers only
Flooring
  • 2MM vinyl sheet / Recycled Non-Slip Flooring
Internal construction
  • Lined and Insulated in GRP, panels with block insulation inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to four separate areas
    (Toilet, Warm Room/Generator, Canteen and Office)
  • Removable low level lifting eyes
  • Fixed low level lifting & fork pockets

Optional Extras

The environmental choice

The Fusion Static units from Groundhog offers the legendary robust and ease of use of the standard Groundhog SWO7600 whilst offering a green environmental solution.

The SWO7600 Fusion is powered by an on board 12V battery enabling, the led lights, heating, hot water and inverter sockets (to charge lap tops, mobile phones and small printer) to be run without the need of the on board generator. The generator is only required to charge the onboard battery and run the hot water, kettle and microwave. The generator is fitted with an auto stop timer to save over running and unnecessary wastage.

BATTERY STORES EXCESS POWER
1. SWO7600 Fusion control panel

SWO7600 Fusion control panel with battery indicator allows the user to control the heater temperature. Included is an inverter powered single socket.

BATTERY STORES EXCESS POWER
2. 12V LED PIR lighting

12V LED PIR lighting automatically senses movement turning lights on automatically. Situated in the canteen, toilet and generator room.

BATTERY STORES EXCESS POWER
3. Battery Guard with Pro Charge Ultra

Pro Charge Ultra (a) charges the 130A/hr battery when the generator is running. The Battery Guard (b) prevents the excessive discharge of the battery and protects electronic appliances against undervoltage.

BATTERY STORES EXCESS POWER
4. Air blown heating system

The air blown heating system does not require the generator to run continuously due to the on-board battery system saving on fuel and servicing costs. Heating outlets set in canteen and generator room.

GENERATOR PRODUCES POWERGENERATOR PRODUCES POWER
BATTERY STORES EXCESS POWERBATTERY STORES EXCESS POWER
NO WASTED POWERNO WASTED POWER
LESS FUEL USEDLESS FUEL USED
COST SAVINGS ON FUEL USECOST SAVINGS ON FUEL USE

It saves you money

The Fusion Static units' environmental features give owners and end users savings by way of reduced fuel usage, 60% reduction in generator servicing, longer generator life, fewer breakdowns and massively reduced noise pollution.
  • High quality buildHigh quality build
  • Reduced fuel usageReduced fuel usage
  • 60% reduction in generator servicing60% reduction in generator servicing
  • Longer generator life Longer generator life
  • Fewer breakdownsFewer breakdowns
  • Full service and maintenance package Full service and maintenance package
  • Roof mounted solar panelRoof mounted solar panel
Which leads to…
  • Increased longevity of unitIncreased longevity of unit
  • Extended warrantiesExtended warranties
  • Higher residual valueHigher residual value
Saving you money…
Saving you money
Greater return on investment

Value Proposition

*Potential yearly saving for the SWO7600 Fusion

Weighs 1800kg reducing haulage costs
Weighs 4,300kg reducing haulage costs
Minimum fuel savings of up to £3,776
Reduced fuel costs of up to
60%
CO2 emissions saving of over 18,000kg
CO2 emission savingsup to
60%
Generator service cost saving of £1,750
Generator service cost saving of £1,750
Potential breakdown costs saving of £1,200
Potential breakdown costs saving of £1,200
Low noise pollution
Low noise pollution

Figures are for guidance only. For your own specific savings, contact Genquip for your bespoke value proposition.

Providing a secure working environment

All steel construction
All steel
construction

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

CDM & HSE compliant

The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.

SAFETY WORKING REGULATIONS

These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals
Regulation 20 Sanitary Conveniences
Regulation 21 Washing Facilities
Regulation 22 Provision for Drinking Water
Regulation 23 Provision for Drying Clothing
Regulation 24 Facilities for Changing Clothing
Regulation 25 Facilities for Rest & to Eat Meals
