The i500 offers the legendary robustness and ease of use of the Fusion Pulse Groundhog Mobile welfare unit whilst offering an enhanced green environmental solution. Offering upto 100% reductions in carbon emissions whilst generator is not in use.
The i500 is designed to run in summer months without the onboard power unit running. During winter period and night use the power unit will be required, with up to 90% reduction when compared to the fusion pulse welfare unit.
The irange welfare units from Groundhog are suitable for accommodating twelve to fourteen persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.
The irange welfare units from Groundhog offers the legendary robust and ease of use of the fusion pulse Groundhog GPO500 whilst offering a green environmental solution.
The i500 Mobile is powered by an on-board battery system enabling, all internal services to run without the need of the on-board power unit. The on-board power unit is only required to charge the batteries and starts and stops as and when battery levels dictate. Ensuring zero loss of power.

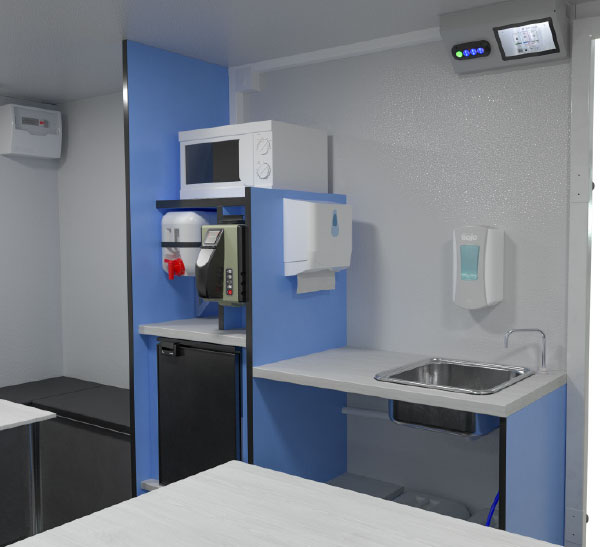

i500 control panel allows the user to operate the 12v system power including, air-blown heating, warm water for handwash & hot drinking water. The control panel also provides fuel, waste and fresh water tank levels. (Full flush models only)
12V LED PIR lighting automatically senses movement turning lights on automatically. Situated in the canteen, toilet and generator room.
The air blown heating and hot water system does not require the generator to run continuously due to the on-board battery system, saving on fuel and servicing costs. Heating outlets set in canteen and generator room.
Figures based on units running 5 days per week 10hrs a day. Webasto heating systems will use between 0.1 and 0.2 L of diesel per hour depending on load. As an average it will use 0.1l per hour when in use.
The i500 is designed to run in summer months without the onboard power unit running. During the winter period and night use the power unit will still be required, with a reduction in running of up to 90% reduction when compared to the fusion pulse welfare unit.
Steel construction forms one of the most secure welfare units on the market.
Groundhogs unique lowering system which enables the unit to be secured at ground level when sited. This also enables a safe entry and exit by personnel without the requirement for steps.
Steel personnel doors with built in locking mechanism and hidden hinges.
The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.
The nosecone security cover is a swing operated hood which protects the towing coupling and once locked, prevents the unit from being removed off site.
Push button controls to lower front and rear hydraulic rams
Rams lift unit from ground ready to release axle pins
Unit is lowered and canopy locked to protect towing facility
These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.
Groundhog welfare units are supplied with a current electrical installation test certificate.
| Length | 5000mm |
|---|---|
| Length (Inc. Drawbar) | 6320mm(L)* |
| Height (on wheels) | 2900mm(L)* |
| Height (on ground) | 2500mm(L)* |
| On-board Power Unit | 2kVA |
| Unladen Weight | 2,600kg* |
| Possible Gross Weight | 3,000kg* |
| Solar Panel x4 | 360 Watt |
| Fresh Water | 25 Litres |
| Waste Water | 25 Litres |
| Underfloor Toilet Waste Tank | 200 Litres |
| Toilet Water Tank under seating | 50 Litres |
| Fuel Tank | 32 Litres |
