Static Welfare Unit

  • Lightweight, anti-vandal and incredibly efficient
  • Huge reductions in fuel usage, carbon emissions and service schedules.
  • Incorporating all the latest environmental and safety technologies, these units are ideal for the ever increasing demands of the hire industry

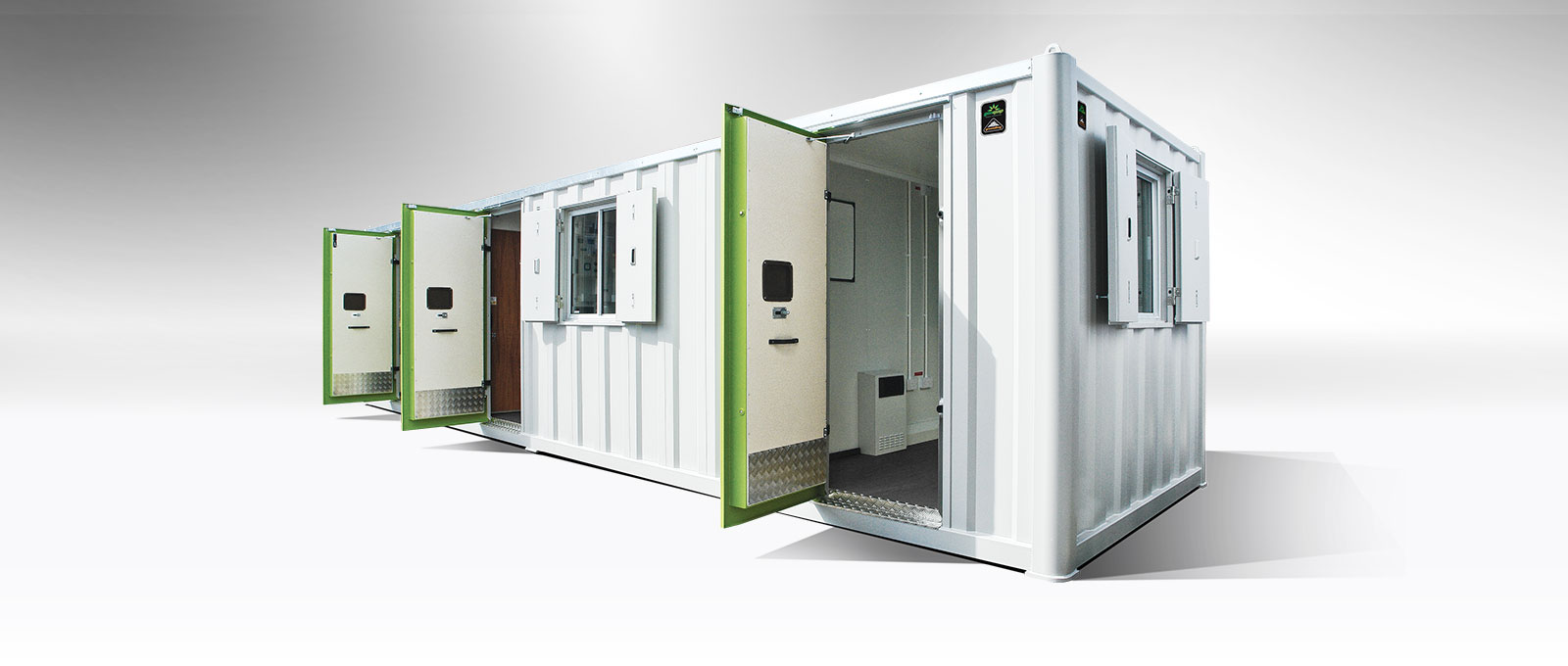

Welfare Fusion SWO9700 Eco Fusion


Groundhog ECO FUSION

Anti-vandal, static, site accommodation unit

The static SWO9700 Eco Fusion offers all the cost effective and environmental features & benefits of the SWO7600 with the added feature of a spacious toilet, incorporating full eco flush & waterless urinal and increased space in the canteen area, which accommodates up to 12 people.

Innovative, functional, environmentally efficient and cost effective

If you require secure welfare and office space with large toilet space and facilities, then the SWO9700 is an ideal static unit.

Along with the SWO7600, it meets HSE requirements, offers anti-vandal features which include a steel personnel double locking door systems and internally secured steel window shutters, providing all your on-site needs in one compact, cost effective package. The units are suitable for accommodating twelve people, which provides pleasant and safe working environments, ideal for rental companies and contractors.


Useful information

Dimensions 9760mm(L) x 2755mm(W)*
Unladen Weight 5,500kg*
Possible Gross Weight 7,010kg*
Generator 9.8kVA
SWO9700 seating up to 8 people
Offering a pleasant & comfortable
welfare environment

The Eco Fusion Static units from Groundhog are suitable for accommodating twelve persons, which provides pleasant and safe working environments, ideal for rental companies and contractors.

360° Panoramic Tour

360° TourOfficeClick here view
360° TourCanteenClick here view
360° TourDrying RoomClick here view
360° TourToiletClick here view

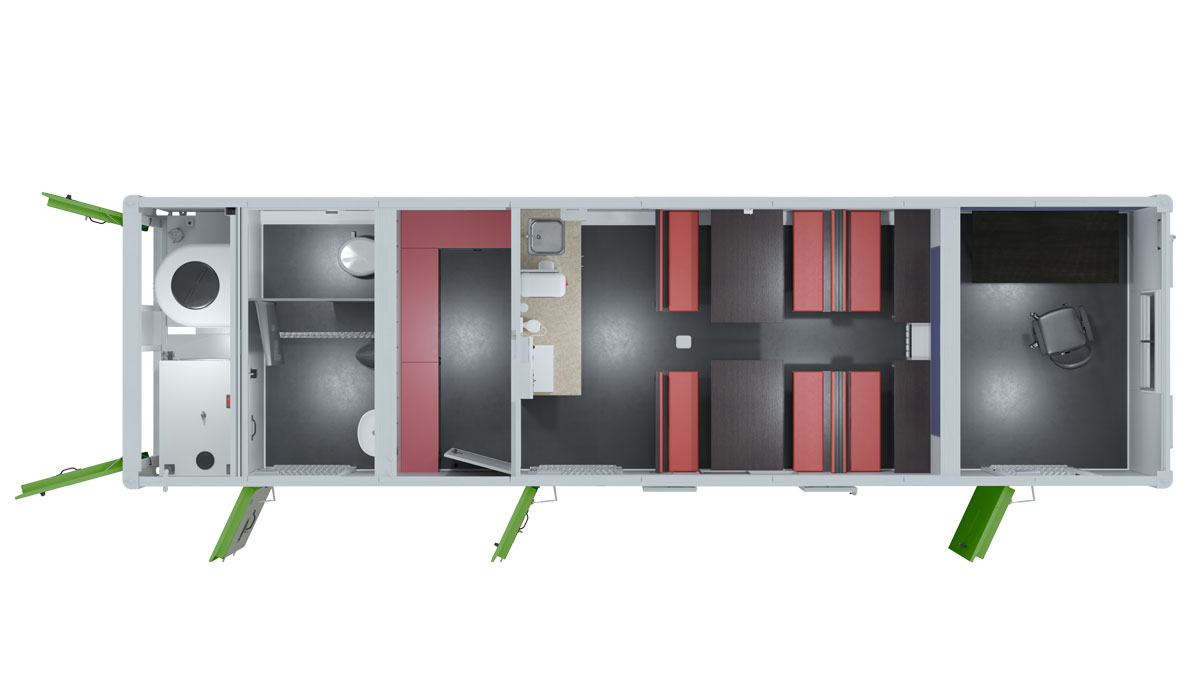

Static welfare cabin key features

Accommodating Health & Safety requirements and providing all your on-site needs in one small package.
1. Welfare Area
  • Pleasant and light rest area
  • Table and bench seating for up to 12 people
  • Air blown heating system – thermostatically controlled
  • Warm water supplied by on-board 12V heating system
  • Microwave and kettle – both hard-wired
  • Stainless steel sink with instant warm water
  • Worktop storage (1,000mm) base unit
  • Consumer board c/w RCD & MCB’s
  • Hour run meter on generator
  • Carbon monoxide monitor and smoke alarm
  • Paper towels, liquid soap and cup dispenser
  • 1,200 x 900mm notice board­
  • 1 x 230v double, 1 x single 230v socket & 1 x single invertor powered socket
  • 12V socket and USB (optional)
  • 12V LED lighting with PIR
2. Drying Area
  • 12V LED lighting with PIR
  • Air blown heating system – thermostatically controlled
  • Bench seating and coat hooks
  • 12V fuse board and inverter for sockets
  • Diesel powered heating system
  • 130Amp hour battery
  • 12V 30Amp battery charger
  • Battery guard with fuse panel
  • High Level Window
3. Toilet Area
  • Waterless urinal / Eco full flush ceramic toilet
  • Ceramic hand wash basin with warm water tap
  • Warm water supplied by on-board 12V heating system
  • Toilet roll holder / mirror
  • 12V LED lighting with PIR
  • Liquid soap and paper towel dispenser
  • High Level Window
4. Warm Room / Generator Area
  • 9.8kVA super silent diesel generator with exhaust outlet and ventilation
  • 300 litre diesel tank with filler neck and level gauge
  • Fuel tank runtime = approx. 120 hours
  • 600L fresh water tank and 650L waste tank
  • 12V LED lighting with PIR
  • Frost stat
  • Generator start battery
  • Air blown heating system
5. Office Area
  • Sliding window with steel shutters, which when closed are secured internally
  • Notice and wipe clean board
  • Can accommodate 2 people
  • Office table and chair (optional)
  • Air blown heating system – thermostatically controlled
  • 12V LED lighting with PIR
  • 12V inverter sockets for use of laptops & battery charging
  • 230V double socket
  • 2MM vinyl sheet
Internal construction
  • Lined and Insulated in GRP, panels with block insulation inserts
External construction
  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to four separate areas
    (Toilet, Warm Room/Generator, Canteen and Office)
  • Removable low level lifting eyes

Optional Extras

The environmental choice

The Eco Fusion Static units from Groundhog offers the legendary robust and ease of use of the standard Groundhog SWO9700 whilst offering a green environmental solution.

The SWO9700 Eco Fusion is powered by an on board 12V battery enabling, the led lights, heating, hot water and inverter sockets (to charge lap tops, mobile phones and small printer) to be run without the need of the on board generator. The generator is only required to charge the onboard battery and run the hot water, kettle and microwave. The generator is fitted with an auto stop timer to save over running and unnecessary wastage.

1. SWO9700 Fusion control panel

SWO9700 Fusion control panel with battery indicator allows the user to control the heater temperature. Included is an inverter powered single socket.

2. 12V LED PIR lighting

12V LED PIR lighting automatically senses movement turning lights on automatically. Situated in the canteen, toilet and generator room.

3. Battery Guard with Pro Charge Ultra

Pro Charge Ultra (a) charges the 130A/hr battery when the generator is running. The Battery Guard (b) prevents the excessive discharge of the battery and protects electronic appliances against undervoltage.

4. Air blown heating system

The air blown heating system does not require the generator to run continuously due to the on-board battery system saving on fuel and servicing costs. Heating outlets set in canteen and generator room.


It saves you money

The Eco Fusion Static units' environmental features give owners and end users savings by way of reduced fuel usage, 60% reduction in generator servicing, longer generator life, fewer breakdowns and massively reduced noise pollution.
  • High quality buildHigh quality build
  • Reduced fuel usageReduced fuel usage
  • 60% reduction in generator servicing60% reduction in generator servicing
  • Longer generator life Longer generator life
  • Fewer breakdownsFewer breakdowns
  • Full service and maintenance package Full service and maintenance package
  • Roof mounted solar panelRoof mounted solar panel
Which leads to…
  • Increased longevity of unitIncreased longevity of unit
  • Extended warrantiesExtended warranties
  • Higher residual valueHigher residual value
Saving you money…
Saving you money
Greater return on investment

Value Proposition

*Potential yearly saving for the SWO9700 Eco Fusion

Weighs 1800kg reducing haulage costs
Weighs 5,400kg reducing haulage costs
Minimum fuel savings of up to £3,776
Reduced fuel costs of up to
CO2 emissions saving of over 18,000kg
CO2 emission savingsup to
Generator service cost saving of £1,750
Generator service cost saving of £1,750
Potential breakdown costs saving of £1,200
Potential breakdown costs saving of £1,200
Low noise pollution
Low noise pollution

Figures are for guidance only. For your own specific savings, contact Genquip for your bespoke value proposition.

Providing a secure working environment

All steel construction
All steel

Steel construction forms one of the most secure welfare units on the market.

Highly secure double lock door
Highly secure double lock door

Steel personnel doors with built in locking mechanism and hidden hinges.

High security window shutters
High security window shutters

The windows are protected by steel shutters, which are locked internally and can only be opened from inside the rest room.

CDM & HSE compliant

The Groundhog Welfare Unit complies with Health & Safety regulations which guarantees certain facilities for contractors working on site.


These include sanitary conveniences, washing facilities, access to drinking water, accommodation for drying and changing clothes, and an area for rest and eating.

Groundhog welfare units are supplied with a current electrical installation test certificate.

Sanitary Conveniences
Washing Facilities
Provision for Drinking Water
Provision for Drying Clothing
Facilities for Changing Clothing
Facilities for Rest & to Eat Meals
Regulation 20 Sanitary Conveniences
Regulation 21 Washing Facilities
Regulation 22 Provision for Drinking Water
Regulation 23 Provision for Drying Clothing
Regulation 24 Facilities for Changing Clothing
Regulation 25 Facilities for Rest & to Eat Meals
